Introduction
Parks Canada oversees exterior signage across national parks, national historic sites, and national marine conservation areas from coast to coast. That geographic spread demands one of the most extensive standardized sign systems in the country. It covers everything from trailhead markers to bilingual safety warnings.
Site managers, contractors, and design or fabrication partners often hit the same wall: the official standards document is technical, dense, and unforgiving. Bilingual placement rules, pictogram approval thresholds, and material specifications all have to line up correctly. Miss one, and a sign risks getting sent back for rework.
This guide breaks down the program's goals, its pictogram system, the technical requirements behind compliant signage, and how organizations can find a fabrication partner equipped for standards-driven work.
Key Takeaways
- Parks Canada's signage program creates one federally recognizable identity, distinct from provincial and municipal park systems
- Pictograms must meet ISO 7001 standards and pass ISO 9186 comprehension testing before approval
- Every exterior sign must be bilingual, weather-durable, and designed to protect ecological or commemorative integrity
- Standardized materials and layouts cut long-term fabrication and maintenance costs network-wide
- Non-compliant signage faces rejection under Parks Canada's centrally enforced framework
Understanding the Parks Canada Exterior Signage Program
Parks Canada built its exterior signage standards to give the agency a visual identity that visitors can recognize instantly, separate from provincial or municipal park systems. This isn't a branding preference.
It stems from the Treasury Board of Canada's Federal Identity Program (FIP), a policy requiring federal institutions to present a coherent, consistent public image while still allowing room for individual identity within that framework.
The FIP itself traces back to a 1969 task force that found government bodies lacked a uniform image, leaving visitors unable to tell federal facilities apart from provincial or private ones.
Formal FIP guidelines followed through the 1970s. Parks Canada published its own Exterior Signage: Standards and Guidelines as Version 1 in March 2007, replacing older sign manuals from 1975 and 1993.
Every new sign produced for a Parks Canada-administered site must conform to this current standard. Parks Canada doesn't automatically pull older signage, but any new project requires checking for the latest updates first.

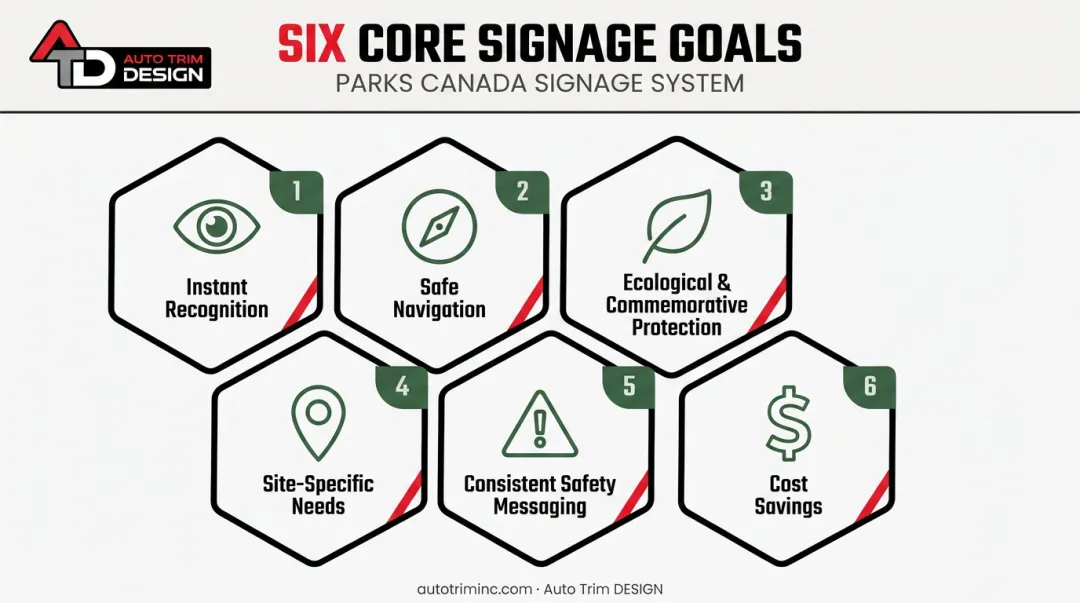

The Six Core Goals Behind the Signage System
The standards document defines six specific objectives every sign must serve:
- Instant recognition – Canadian and international visitors should identify Parks Canada facilities immediately through a consistent sign system
- Safe, easy navigation – visitors need to find their way through parks, historic sites, and marine conservation areas without confusion
- Minimal ecological or commemorative impact – signs must work within their surroundings without harming the site's natural or historic character
- Site-specific visitor needs – signage design still has to reflect what each individual location actually requires
- Consistent safety messaging – warnings and regulatory information need to read the same way across every site
- Cost savings – standardized design and materials are intended to reduce fabrication, installation, and maintenance costs network-wide
Individual site managers don't interpret these goals or apply the standard on their own. Parks Canada directs all such questions to its Identity Program Officer, underscoring how centralized this program really is.
Breaking Down the Signage Standards: Pictograms, Categories & Testing
Parks Canada developed a pictogram library of more than 300 symbols, making it one of the largest public information sign systems anywhere. The library draws on Canada's CAN/CSA-Z321-96 workplace symbol standard and the international ISO 7001 Public Information Symbols standard, which governs how symbols communicate in publicly accessible spaces.
The Six Symbol Categories Used Across the System
Every pictogram falls into one of six categories, each with a fixed colour treatment that visitors learn to recognize over repeated exposure:
| Category | Colour Treatment | Example Use |
|---|---|---|
| Prohibition | Red and black on white | No camping |
| Mandatory | White on black | Required safety equipment |
| Caution | Black on yellow | Uneven terrain warnings |
| Danger | White on red | High-voltage or fall hazards |
| Emergency | White on green | First aid, exits |
| Guidance/Information | White on blue | Lookout points, transportation |
This colour consistency matters because visitors rely on pattern recognition, not close reading, when moving quickly through unfamiliar terrain.
How Symbols Are Tested and Approved
Every symbol in the library was tested for comprehension using ISO 9186-1, a methodology for measuring how accurately people interpret a graphical symbol without additional context. Parks Canada applies its own adoption thresholds on top of that method:
- Regulatory and warning symbols need an 80% or higher comprehension score, including the accompanying text message
- Information symbols need 60% or higher to be adopted
- Warning symbols always require supporting text, regardless of comprehension score
- Information symbols below 80% should still be paired with supporting text
For designers and fabricators, the practical takeaway is straightforward: only pictograms currently listed in the official Appendix A inventory should be used. Custom or altered symbols, even minor tweaks, create real non-compliance risk and can trigger a rejected sign order late in production.
Fabricators like Auto Trim DESIGN cross-check every pictogram against the Appendix A inventory before production, catching mismatches that could otherwise delay a project.
Technical & Design Requirements for Compliant Signage
Beyond pictograms, the standards document specifies exact sizing, colour palettes, typography, and layout grids for every sign type. Deviating from any of these typically requires review through the Identity Program approval process, not a local judgment call.

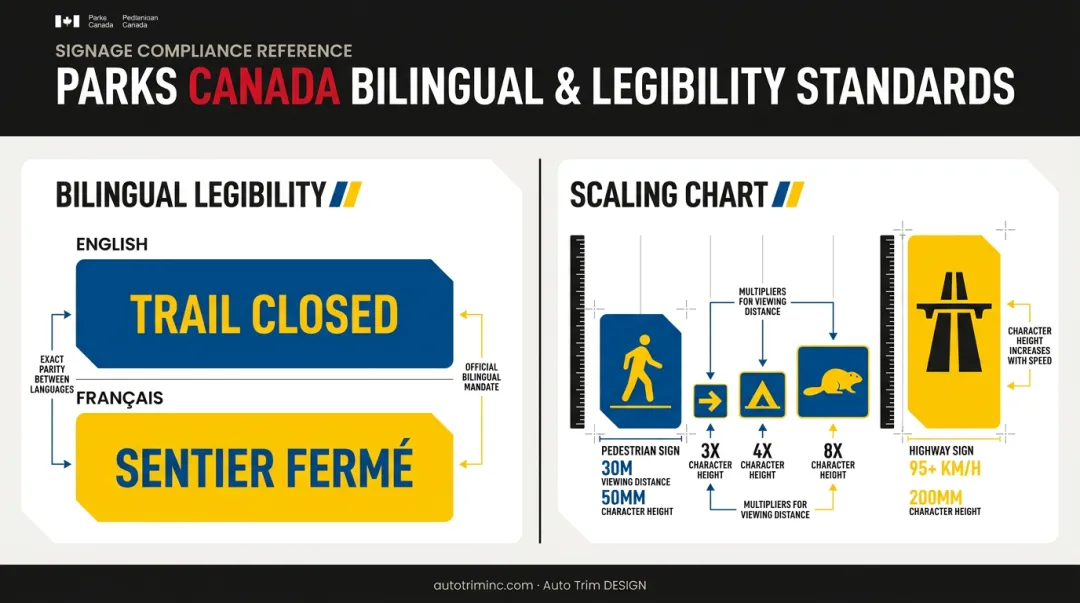

Bilingual and Legibility Standards
Every exterior sign must present English and French with equal visual weight, a requirement tied directly to Canada's Official Languages Act. That means:
- Identical type style, size, weight, and colour for both languages, no exceptions
- English positioned first (left or top) outside Quebec; French first within Quebec
- Side-by-side layout as the default, with stacked text only when space or operational needs demand it
- Helvetica Neue 75 as the mandatory typeface for all fabrication contracts
Legibility rules scale with viewing distance and speed:
| Sign Type | Viewing Distance/Speed | Minimum Character Height |
|---|---|---|
| Pedestrian sign | 30 metres | 50 mm |
| Highway sign | 95+ km/h | 200 mm |
Symbols follow a proportional system based on that same character height: arrows at 3 times, ordinary symbols at 4 times, and primary-element symbols at 8 times.
Materials, Durability & Environmental Fit
Signage sitting outdoors year-round in Canadian conditions needs to survive UV exposure, salt, abrasion, and freeze-thaw cycles for decades, not years. The standard specifies architectural-grade fluoropolymer powder coatings rated for 20+ years of service life with only marginal degradation, along with:
- Sheet aluminum (alloy 5052-H32) at 3.0 mm thickness for most sign faces
- Rear aluminum-angle reinforcement for wider panels over 1,800 mm
- Rot- and rodent-resistant western red cedar for certain structural elements
- Zero-corrosion stainless-steel fasteners and anchors
Material choice isn't just about longevity, either. The standard is explicit that sign placement and design must not harm a site's ecological or commemorative integrity.
That's why interpretive and welcome signage at historically or culturally significant locations, such as Point Pelee's trilingual entrance sign developed with Caldwell First Nation, often reflects local context alongside federal branding requirements. Discreet, minimalist mounting is favoured, and installing directly onto historic structures is strongly discouraged.
Why Compliance With These Standards Matters
Standardization exists to solve a real logistics problem: hundreds of sites, each developing signage independently, would mean wildly inconsistent costs and quality. By locking down design, materials, and fabrication specs across the network, Parks Canada simplifies procurement and keeps long-term maintenance predictable.
That said, compliance isn't always simple in practice. Fitting concise, accurate interpretive content and eye-catching graphics into a fixed panel size, while still meeting typography, colour, and pictogram rules, is a genuine design constraint. There's little room for creative shortcuts.
Inconsistent signage carries a double cost:
- Undermines the federal brand recognition the program was built to establish
- Weakens the safety messaging visitors depend on to read warnings the same way at every site
That's precisely why these standards operate as a mandatory framework enforced through the Identity Program Officer, rather than a style guide contractors can interpret loosely.
Partnering With a Certified Signage Fabricator
Producing signage for a strict, standards-driven, multi-site program is a different challenge than a typical storefront sign order. It calls for a fabricator comfortable working within fixed specifications, not one accustomed to full creative freedom on every job.

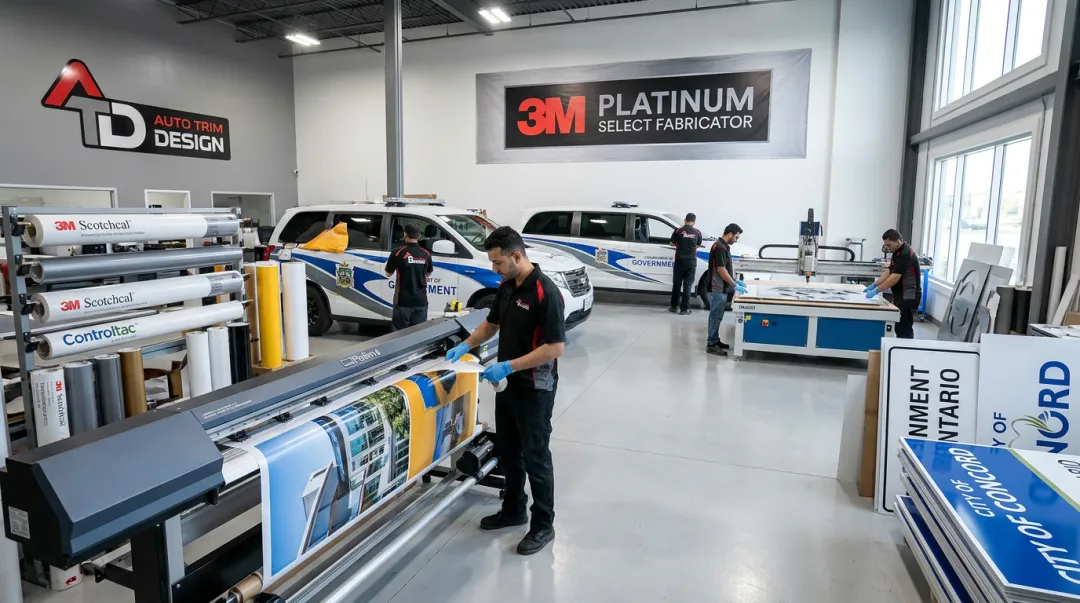

Auto Trim DESIGN fits that profile. The company has spent 41+ years producing branding and signage solutions from its Concord, Ontario facility.
It also holds 3M Platinum Select Fabricator certification, one of the higher tiers of quality recognition within 3M's fabricator network. That status reflects consistent adherence to material application standards and colour-matching precision, which matters when a sign produced in Ontario must look identical to one installed thousands of kilometres away.
That same discipline shows up in the company's large-scale, geographically dispersed projects, including a nationwide fleet rebranding initiative for Avenir Energy that wrapped roughly 350 vehicles from Vancouver Island to Newfoundland. Standards-driven government signage demands the same rigor: centralized production, tight quality control, and reliable installation logistics regardless of location.
The same principles apply well beyond federal parks. Municipalities, visitor centres, and parks-adjacent businesses often need:
- Wayfinding signage with consistent legibility across multiple locations
- Wall murals and branded environments that hold up outdoors for years
- Durable materials suited to public-facing, high-traffic settings
Anywhere consistency, durability, and code compliance matter at scale, the fabrication approach looks much the same.
Frequently Asked Questions
What is the purpose of the Parks Canada Exterior Signage Standards and Guidelines?
The standards exist to create a uniform, federally recognizable sign system across all Parks Canada sites. They support safe visitor navigation, consistent safety messaging, and cost savings through standardized design and materials.
Where can I download the official Parks Canada Exterior Signage document?
Parks Canada publishes the official PDF through its Identity Program, with mirrors on partner resource pages such as the Collective for Parks, Conservation, Innovation and Leadership (CPCIL). Confirm you're using the current version before starting a project.
Are Parks Canada signs required to be bilingual?
Yes. English and French text is a federal requirement on all exterior signage, reflecting Canada's Official Languages Act. Both languages must appear with equal visual prominence, not one styled as secondary.
What pictogram standard does Parks Canada follow?
Parks Canada's pictogram library is based on the international ISO 7001 Public Information Symbols standard. It includes more than 300 symbols organized into six categories, from prohibition to guidance and information.
How are new pictograms approved for use in Parks Canada signage?
New symbols go through ISO 9186 comprehension testing. Regulatory and warning symbols need an 80%+ comprehension score, while information symbols need 60%+ before they're adopted into the official inventory.
Who do I contact for questions about Parks Canada's signage program?
Direct inquiries about the standards to the Parks Canada Identity Program Officer; contact details are listed in the official standards document.
